The 1996 Jeep Grand Cherokee ZJ: a classic SUV renowned for its rugged capabilities, comfortable interior, and timeless design. These vehicles, now decades old, still hold a special place in the hearts of off-road enthusiasts and everyday drivers alike. However, maintaining and restoring a 1996 Grand Cherokee requires a deep understanding of its specific parts and systems. This comprehensive guide will delve into the world of 1996 Jeep Grand Cherokee parts, offering practical advice, insights, and resources to help you keep your ZJ running strong for years to come.
Why Understanding 1996 Jeep Grand Cherokee Parts is Crucial

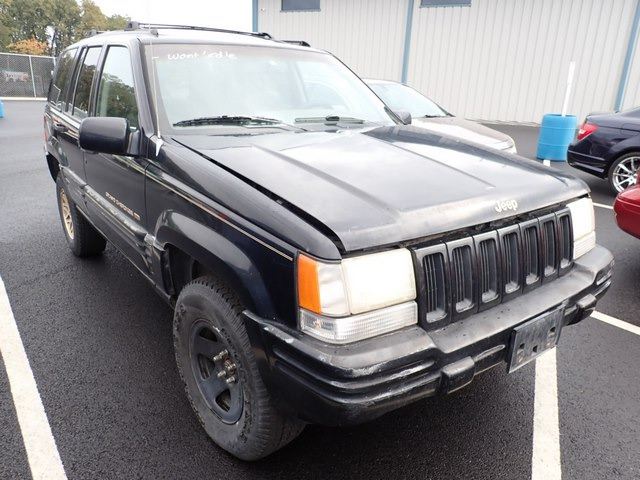

Reviving a Legend: A Comprehensive Guide to 1996 Jeep Grand Cherokee Parts
The 1996 model year marks a specific point in the Grand Cherokee's production run. While many parts are interchangeable with other ZJ years (1993-1998), some components are unique to certain years or engine configurations. Using the wrong part can lead to performance issues, safety hazards, and even damage to other vehicle systems. Therefore, accurate identification and selection of 1996-specific parts is paramount for successful repairs and upgrades.
1. Engine Components: The Heart of the Beast
The 1996 Grand Cherokee offered three engine options:
- 4.0L Inline-Six (I6): The most common and arguably most reliable engine. Parts are generally readily available and affordable.
- 5.2L V8 (Magnum): Provides significantly more power and torque. Parts availability is good, but can be slightly more expensive than I6 components.
- Limited Production 5.9L V8 (Magnum): Only available in the Limited trim. Parts for this engine are the rarest and often the most expensive.
Key Engine Parts & Considerations:
- Engine Blocks & Internals: Overhauling a tired engine requires careful selection of pistons, rings, bearings, and camshafts. Ensure the parts are compatible with your specific engine type (4.0L, 5.2L, or 5.9L) and desired performance goals.
- Cylinder Heads: Replacing or rebuilding cylinder heads can improve performance and fuel efficiency. Check for cracks and ensure proper valve seating.
- Fuel System: Fuel injectors, fuel pumps, and fuel filters are crucial for proper engine operation. Consider upgrading to higher-flow injectors for improved performance, especially with V8 engines.
- Cooling System: Radiators, water pumps, thermostats, and hoses are vital for preventing overheating. Consider upgrading to a high-performance radiator, especially if you plan on towing or off-roading.
- Ignition System: Distributors (if applicable, some early 96 models), spark plugs, ignition coils, and ignition control modules (ICM) ensure proper combustion. Upgrading to a high-performance ignition system can improve throttle response and fuel economy.
- Exhaust System: Manifolds, catalytic converters, mufflers, and tailpipes affect engine performance and emissions. Consider a cat-back exhaust system for improved sound and horsepower.
- Sensors: Oxygen sensors (O2 sensors), crankshaft position sensors (CPS), and camshaft position sensors (CMP) are essential for proper engine management. Replace faulty sensors promptly to avoid performance issues.
2. Transmission & Drivetrain: Putting Power to the Ground
The 1996 Grand Cherokee typically came with either an automatic or manual transmission. The automatic was more common. The drivetrain options included:
- 2WD (Rear-Wheel Drive): Standard on some models.
- Part-Time 4WD: Requires manual engagement.
- Full-Time 4WD (Quadra-Trac): Automatically engages 4WD when needed.
Key Transmission & Drivetrain Parts & Considerations:
- Transmissions: Rebuilding or replacing a worn-out transmission requires careful attention to detail. Ensure you use the correct transmission fluid and filter for your specific transmission model.
- Transfer Case: The transfer case distributes power to the front and rear axles. Check for leaks and ensure proper operation of the shift linkage.
- Driveshafts: Driveshafts transmit power from the transmission to the axles. Check for worn U-joints and balance issues.
- Axles: Axle shafts, differentials, and gears are crucial for transferring power to the wheels. Consider upgrading to stronger axles and lockers for improved off-road performance.
- Differentials: Open, limited-slip, and locking differentials affect traction and off-road capabilities. Consider installing a locker for improved traction in challenging terrain.
- U-Joints: These are critical for transferring power while allowing for movement. Check these and grease these often.
3. Suspension & Steering: Ride Quality and Control
The 1996 Grand Cherokee utilized a solid front axle and a multi-link rear suspension.
Key Suspension & Steering Parts & Considerations:
- Shocks & Struts: Worn shocks and struts can negatively impact ride quality and handling. Consider upgrading to performance shocks for improved control.
- Springs: Sagging springs can reduce ground clearance and affect handling. Consider replacing or upgrading springs for improved ride height and performance.
- Control Arms: Control arms connect the axles to the chassis. Check for worn bushings and ball joints.
- Ball Joints: Worn ball joints can cause steering issues and vibrations. Replace worn ball joints promptly.
- Steering Gearbox: The steering gearbox controls the steering system. Check for leaks and play in the steering wheel.
- Power Steering Pump: The power steering pump provides hydraulic pressure for power steering. Check for leaks and ensure proper operation.
- Tie Rods: Tie rods connect the steering gearbox to the wheels. Check for worn ends and play in the steering wheel.
4. Brakes: Ensuring Safe Stopping Power
The 1996 Grand Cherokee featured disc brakes in the front and drum or disc brakes in the rear.
Key Brake Parts & Considerations:
- Brake Pads & Rotors: Worn brake pads and rotors can reduce braking performance. Replace them with high-quality components for optimal stopping power.
- Brake Calipers: Brake calipers clamp the brake pads against the rotors. Check for leaks and ensure proper operation.
- Brake Drums & Shoes: If equipped with rear drum brakes, check the condition of the drums and shoes.
- Brake Hoses: Brake hoses carry brake fluid to the calipers. Check for cracks and leaks.
- Master Cylinder: The master cylinder provides hydraulic pressure to the brake system. Check for leaks and ensure proper operation.
- Anti-Lock Braking System (ABS): The ABS system prevents wheel lockup during hard braking. Ensure the ABS system is functioning properly.
5. Electrical System: Keeping Everything Powered
The electrical system powers all the vehicle's components, from the lights to the engine management system.
Key Electrical Parts & Considerations:
- Battery: A healthy battery is essential for starting the engine and powering the electrical system.
- Alternator: The alternator charges the battery and provides power to the electrical system while the engine is running.
- Starter: The starter motor cranks the engine to start it.
- Wiring Harness: The wiring harness connects all the electrical components. Check for damaged or corroded wires.
- Fuses & Relays: Fuses and relays protect the electrical system from overloads.
- Sensors: Various sensors provide data to the engine management system and other systems.
- Lights: Headlights, taillights, brake lights, and turn signals are essential for safety.
6. Interior & Exterior: Restoring the Look and Feel
Restoring the interior and exterior can bring a 1996 Grand Cherokee back to its former glory.
Key Interior & Exterior Parts & Considerations:
- Seats: Worn or damaged seats can be reupholstered or replaced.
- Carpeting: Stained or torn carpeting can be replaced.
- Dashboard: Cracked or faded dashboards can be repaired or replaced.
- Door Panels: Damaged door panels can be repaired or replaced.
- Body Panels: Rusted or damaged body panels can be repaired or replaced.
- Bumpers: Damaged bumpers can be repaired or replaced.
- Grille: A broken or faded grille can be replaced.
- Lights: Headlights, taillights, and marker lights can be replaced.
Tips for Finding 1996 Jeep Grand Cherokee Parts
- Online Retailers: Websites like Quadratec, Morris 4x4 Center, Amazon, and eBay offer a wide selection of parts.
- Local Auto Parts Stores: NAPA, AutoZone, and Advance Auto Parts are good sources for common replacement parts.
- Junkyards: Salvage yards can be a great source for used parts, often at significantly lower prices.
- Jeep Forums: Online forums dedicated to Jeeps can be a valuable resource for finding parts and advice.
- Verify Compatibility: Always double-check that the part you are purchasing is compatible with your specific 1996 Grand Cherokee model and engine configuration.
- Read Reviews: Check reviews before purchasing parts online to ensure quality and reliability.
Potential Challenges & Solutions
- Parts Availability: Some parts, especially for the 5.9L V8, can be difficult to find. Be patient and explore different sources.
- Quality Concerns: Not all aftermarket parts are created equal. Choose reputable brands and read reviews.
- Cost: Restoring a classic vehicle can be expensive. Prioritize essential repairs and plan your budget carefully.
- Incorrect Diagnosis: Accurately diagnose the problem before replacing parts to avoid unnecessary expenses.
Price Table: Common 1996 Jeep Grand Cherokee Parts
| Part | Approximate Price Range | Notes |
|---|---|---|
| Brake Pads (Front Set) | $20 - $60 | Price varies by brand and material. |
| Brake Rotors (Front Pair) | $50 - $150 | Price varies by brand and quality. |
| Spark Plugs (Set of 6 or 8) | $15 - $50 | Depends on engine and plug type (Copper, Platinum, Iridium). |
| Oil Filter | $5 - $15 | Varies by brand and filter media. |
| Air Filter | $10 - $25 | Standard or performance filters available. |
| Fuel Filter | $10 - $30 | Inline or in-tank filters, depending on the model. |
| Water Pump | $40 - $100 | Price depends on brand and engine. |
| Radiator | $100 - $300 | Single-core, dual-core, or aluminum options. |
| Starter Motor | $80 - $200 | New or remanufactured options available. |
| Alternator | $100 - $300 | Amperage rating can vary. |
| Shocks (Front Pair) | $50 - $200 | Gas-charged, hydraulic, or performance options. |
| Leaf Springs (Rear Pair) | $150 - $400 | Standard or heavy-duty options available. |
| Ball Joints (Upper & Lower) | $20 - $80 each | Price per ball joint; may require pressing tools. |
| Tie Rod Ends (Inner & Outer) | $15 - $50 each | Price per tie rod end. |
| Headlight Assembly | $50 - $150 each | Halogen or LED options. |
| Taillight Assembly | $40 - $100 each | Standard or aftermarket options. |
| Oxygen Sensor (O2 Sensor) | $20 - $80 each | Upstream or downstream sensors; engine specific. |
| Distributor Cap & Rotor Kit | $20 - $50 | For engines with a distributor. |
| Fuel Injector (Single) | $30 - $100 each | Price per injector; matched sets often recommended. |
Note: These prices are estimates and can vary depending on the vendor, location, and condition of the parts (new, used, or remanufactured). Always compare prices and read reviews before making a purchase.
Frequently Asked Questions (FAQ)
- Q: Where can I find a reliable parts diagram for my 1996 Grand Cherokee?
- A: Online parts catalogs like those offered by Mopar or aftermarket parts suppliers often have detailed diagrams. Also, Jeep forums often have members who can share diagrams.
- Q: Are parts from other Jeep models compatible with my 1996 Grand Cherokee?
- A: Some parts are interchangeable with other ZJ models (1993-1998), but always verify compatibility before purchasing. Consult a parts catalog or a Jeep mechanic.
- Q: What are some common problems with the 1996 Grand Cherokee that I should be aware of?
- A: Common issues include rust, electrical problems, cooling system leaks, and worn suspension components.
- Q: Should I use OEM or aftermarket parts?
- A: OEM (Original Equipment Manufacturer) parts are generally higher quality but more expensive. Aftermarket parts can be a more affordable option, but choose reputable brands.
- Q: How can I tell if a part is the correct one for my vehicle?
- A: Match the part number to the one specified in your vehicle's owner's manual or a parts catalog. You can also consult a mechanic.
- Q: How do I know when to replace my O2 sensors?
- A: Common symptoms of failing O2 sensors include poor fuel economy, rough idling, and a check engine light.
Conclusion
Maintaining and restoring a 1996 Jeep Grand Cherokee requires knowledge, patience, and the right parts. By understanding the specific components of your ZJ and utilizing the resources available, you can keep this classic SUV running strong and enjoying its legendary capabilities for many years to come. Remember to prioritize safety, choose quality parts, and don't hesitate to seek professional help when needed. Happy Jeeping!
