Jeep Liberty Front End Parts: A Comprehensive Guide to Maintaining Your Ride
Introduction: The Foundation of Your Liberty's Performance
Okay, here's a comprehensive article about Jeep Liberty front end parts, structured as you requested.
The Jeep Liberty, a compact SUV known for its off-road capability and rugged charm, relies heavily on its front end components. "Jeep Liberty Front End Parts" encompasses a wide range of components that work together to ensure safe handling, comfortable ride quality, and the ability to tackle challenging terrains. These parts include everything from the suspension system and steering components to the protective elements that shield the engine bay. Understanding these parts, their function, and how to maintain them is crucial for any Liberty owner who wants to keep their vehicle running smoothly and safely for years to come. Neglecting the front end can lead to decreased performance, increased wear and tear on other parts, and, most importantly, compromised safety. This article will serve as your comprehensive guide to understanding, maintaining, and troubleshooting Jeep Liberty front end parts.
1. Understanding the Core Components of the Jeep Liberty Front End
The front end of your Jeep Liberty is a complex assembly of interconnected parts. Before diving into maintenance and troubleshooting, it's essential to understand the key components and their respective roles:
-
Suspension System:
- Upper and Lower Control Arms: These arms connect the wheel hub to the vehicle's frame, allowing the suspension to move up and down. They are crucial for maintaining wheel alignment and absorbing bumps.
- Ball Joints: These spherical bearings connect the control arms to the steering knuckle, allowing for smooth and controlled movement of the wheel.
- Struts/Shocks: These dampen the suspension's movement, preventing excessive bouncing and providing a comfortable ride. The Jeep Liberty utilizes a strut design in the front.
- Coil Springs: These provide the primary support for the vehicle's weight and absorb impacts from the road.
- Sway Bar (Stabilizer Bar): This bar connects the left and right sides of the suspension, reducing body roll during cornering. Sway bar links connect the sway bar to the suspension components.
-
Steering System:
- Steering Knuckle: This component houses the wheel hub and bearings and connects to the control arms and tie rod ends.
- Tie Rod Ends (Inner and Outer): These connect the steering rack to the steering knuckles, transmitting steering input to the wheels.
- Steering Rack and Pinion: This converts the rotational motion of the steering wheel into linear motion, which then moves the tie rod ends and steers the wheels.
- Power Steering Pump: Provides hydraulic pressure to assist in steering, making it easier to turn the wheel.
-
Other Essential Components:
- Wheel Bearings: Allow the wheels to rotate smoothly and support the vehicle's weight.
- Hub Assembly: The complete unit containing the wheel bearing, wheel studs, and mounting flange.
- Brakes (Calipers, Rotors, Pads): While part of the braking system, the front brakes are critical for stopping power and are integrated into the front end assembly.
- CV Axles (4x4 Models): Transmit power from the front differential to the front wheels.
- Front Differential (4x4 Models): Distributes power between the front wheels.

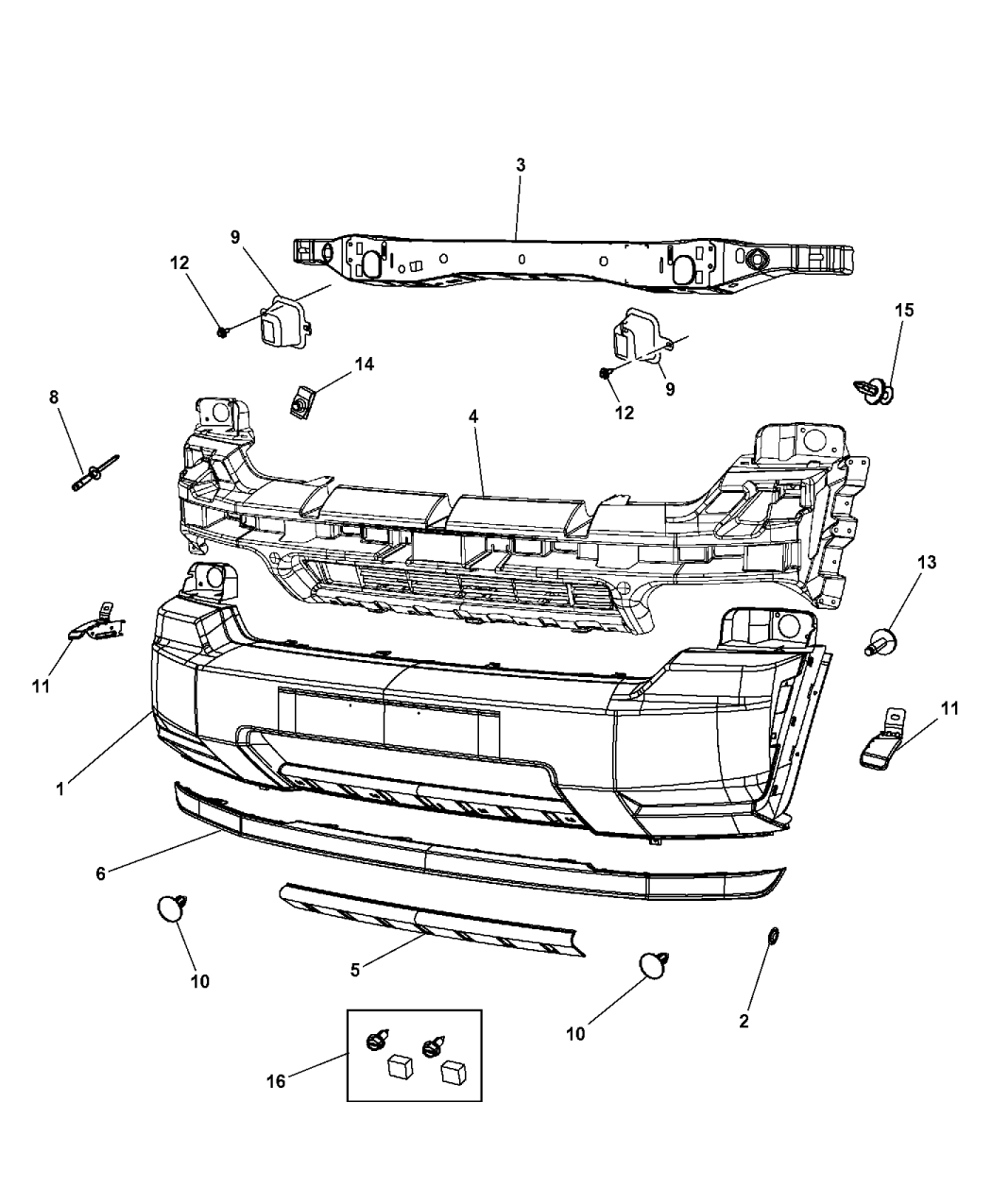

- Front Bumper: Provides protection in the event of a collision.
- Grille: Protects the radiator and engine components while allowing airflow.
- Headlights: Essential for visibility and safety during nighttime driving.
- Fog Lights (Optional): Provide enhanced visibility in foggy or adverse weather conditions.
2. Common Issues and Troubleshooting: Diagnosing Front End Problems
Identifying front end problems early can prevent more significant damage and costly repairs. Here are some common symptoms and their potential causes:
-
Clunking or Popping Noises:
- Possible Causes: Worn ball joints, loose or damaged control arm bushings, worn sway bar links, broken coil spring.
- Troubleshooting: Visually inspect the suspension components for wear or damage. Use a pry bar to check for play in the ball joints and control arm bushings.
-
Squeaking Noises:
- Possible Causes: Dry or worn ball joints, control arm bushings, or sway bar bushings.
- Troubleshooting: Lubricate the suspension components with grease. If the squeaking persists, the bushings may need to be replaced.
-
Vibrations in the Steering Wheel:
- Possible Causes: Unbalanced tires, worn tie rod ends, loose wheel bearings, bent wheel.
- Troubleshooting: Have the tires balanced. Inspect the tie rod ends for play. Check the wheel bearings for looseness or noise.
-
Wandering or Loose Steering:
- Possible Causes: Worn tie rod ends, worn ball joints, worn steering rack bushings, improper wheel alignment.
- Troubleshooting: Inspect the tie rod ends and ball joints for play. Check the steering rack bushings for wear. Have the wheel alignment checked and adjusted.
-
Uneven Tire Wear:
- Possible Causes: Improper wheel alignment, worn suspension components, unbalanced tires.
- Troubleshooting: Have the wheel alignment checked and adjusted. Inspect the suspension components for wear or damage. Have the tires balanced.
-
Difficulty Steering:
- Possible Causes: Low power steering fluid, worn power steering pump, damaged steering rack.
- Troubleshooting: Check the power steering fluid level and add fluid if necessary. Listen for unusual noises from the power steering pump. Inspect the steering rack for leaks or damage.
3. Maintenance Tips for a Long-Lasting Front End
Preventive maintenance is key to extending the life of your Jeep Liberty's front end. Here are some essential maintenance tips:
- Regular Inspections: Inspect the suspension and steering components regularly for signs of wear or damage. Pay close attention to the ball joints, tie rod ends, control arm bushings, and sway bar links.
- Lubrication: Lubricate the grease fittings on the ball joints, tie rod ends, and other suspension components regularly. This will help to prevent wear and corrosion.
- Wheel Alignment: Have the wheel alignment checked and adjusted regularly, especially after off-roading or hitting a large pothole.
- Tire Rotation: Rotate the tires regularly to ensure even wear.
- Power Steering Fluid: Check the power steering fluid level regularly and add fluid if necessary. Use the correct type of power steering fluid specified in your owner's manual.
- Replace Worn Parts Promptly: Replace worn or damaged parts as soon as possible to prevent further damage to other components.
- Proper Torque: When replacing parts, always use a torque wrench to tighten the fasteners to the manufacturer's specifications.
4. Upgrading Your Jeep Liberty Front End
While the stock Jeep Liberty front end is capable, there are several upgrades you can make to improve its performance and durability, especially if you plan on doing a lot of off-roading:
- Lift Kits: Lift kits raise the vehicle's ride height, providing more ground clearance and allowing for larger tires.
- Heavy-Duty Suspension Components: Upgrading to heavy-duty ball joints, tie rod ends, and control arms can improve the durability and strength of the front end.
- Performance Shocks: Performance shocks can provide better damping and control, improving ride quality and handling.
- Sway Bar Disconnects: Sway bar disconnects allow you to disconnect the sway bar for improved articulation off-road.
- Skid Plates: Skid plates protect the vulnerable components of the front end, such as the front differential and steering rack, from damage.
5. Step-by-Step Guide: Replacing Ball Joints (Example)
Disclaimer: This is a general guide, and specific procedures may vary depending on your Jeep Liberty's year and model. Always consult a repair manual and follow safety precautions.
Tools Needed:
- Jack and jack stands
- Wheel chocks
- Socket set and wrench set
- Torque wrench
- Ball joint press
- Hammer
- Penetrating oil
- Safety glasses
- Gloves
Steps:
- Safety First: Park the vehicle on a level surface, engage the parking brake, and chock the rear wheels.
- Loosen Lug Nuts: Loosen the lug nuts on the wheel you will be working on.
- Jack Up Vehicle: Jack up the vehicle and support it with jack stands.
- Remove Wheel: Remove the wheel and tire assembly.
- Disconnect Brake Caliper: Remove the brake caliper and rotor. Support the caliper so it doesn't hang by the brake line.
- Disconnect ABS Sensor: Disconnect the ABS sensor wire from the hub assembly.
- Disconnect Tie Rod End: Use a pickle fork or tie rod separator to disconnect the tie rod end from the steering knuckle.
- Disconnect Ball Joint: Loosen the ball joint nut but do not remove it completely. Use a ball joint separator tool to press the ball joint out of the steering knuckle.
- Remove Steering Knuckle: Remove the steering knuckle from the vehicle.
- Remove Old Ball Joint: Using a ball joint press, press the old ball joint out of the control arm.
- Install New Ball Joint: Using the ball joint press, press the new ball joint into the control arm.
- Reassemble: Reassemble the steering knuckle, tie rod end, brake components, and wheel.
- Torque: Torque all fasteners to the manufacturer's specifications.
- Lower Vehicle: Lower the vehicle and remove the jack stands.
- Final Torque: Torque the lug nuts to the proper specification.
- Repeat: Repeat the process on the other side of the vehicle if necessary.
- Alignment: Get a wheel alignment after replacing ball joints.
6. Potential Challenges and Solutions
- Rust and Corrosion: Rust can make it difficult to remove bolts and fasteners. Use penetrating oil and heat to loosen stubborn parts.
- Stuck Ball Joints: Ball joints can be difficult to remove, especially if they are corroded. Use a ball joint press and apply heat if necessary.
- Stripped Threads: Stripped threads can occur when tightening fasteners. Use a thread repair kit or replace the damaged part.
- Incorrect Parts: Make sure you are using the correct parts for your Jeep Liberty's year and model. Double-check the part numbers before installing anything.
- Lack of Experience: If you are not comfortable working on your vehicle, it is best to take it to a qualified mechanic.
7. Jeep Liberty Front End Parts Price Table
| Part | Description | Estimated Price (USD) | Notes |
|---|---|---|---|
| Upper Control Arm | Controls wheel movement, connects hub to frame | $80 - $200 | Prices vary by brand and material. Consider quality for durability. |
| Lower Control Arm | Supports the spindle, mounts to frame | $100 - $250 | Check for bushing quality. Heavy-duty options available. |
| Ball Joint | Allows for rotational movement of steering | $30 - $80 | Critical for steering responsiveness and safety. Replace in pairs for balanced wear. |
| Strut Assembly | Shock absorber and coil spring in one unit | $150 - $400 | Improves ride quality and handling. Upgraded struts offer enhanced performance. |
| Sway Bar Link | Connects sway bar to suspension | $20 - $50 | Reduces body roll during cornering. Replace if worn or damaged for better handling. |
| Tie Rod End (Inner/Outer) | Connects steering rack to steering knuckle | $30 - $70 | Crucial for steering accuracy. Replace in pairs for symmetrical wear. |
| Steering Rack and Pinion | Converts steering wheel motion to wheel movement | $250 - $700 | Consider a remanufactured unit for cost savings. Inspect for leaks and smooth operation. |
| Power Steering Pump | Provides hydraulic pressure for steering | $100 - $300 | Essential for easy steering. Listen for whining noises as a sign of pump failure. |
| Wheel Bearing/Hub Assembly | Allows wheel to rotate smoothly | $80 - $250 | Critical for wheel stability and safety. Replace if worn or noisy. |
| CV Axle (4x4) | Transmits power to front wheels in 4x4 models | $80 - $200 | Check for torn boots and clicking noises, indicating joint wear. |
| Front Bumper | Provides frontal protection | $150 - $500+ | Prices vary widely based on material (steel, plastic), style, and brand. Aftermarket options provide increased protection and aesthetics. |
| Grille | Protects radiator and engine components | $50 - $200 | Can be easily replaced for cosmetic upgrades. |
| Headlight Assembly | Provides illumination for night driving | $80 - $300+ | Prices vary depending on type (halogen, LED, HID) and brand. Consider upgrading for improved visibility. |
Note: Prices are approximate and may vary based on the retailer, brand, and condition (new, remanufactured) of the part. Labor costs for installation are not included.
Conclusion: Keeping Your Liberty Rolling Strong
The front end of your Jeep Liberty is the unsung hero of its performance. By understanding its components, recognizing common issues, and performing regular maintenance, you can ensure your Liberty continues to provide a safe, comfortable, and capable ride for years to come. Don't hesitate to seek professional help when needed, and always prioritize safety when working on your vehicle. A well-maintained front end not only enhances your driving experience but also protects your investment and ensures the longevity of your Liberty.
Frequently Asked Questions (FAQ)
- Q: How often should I get my wheel alignment checked?
- A: It's recommended to get a wheel alignment check every 12,000 miles or annually, whichever comes first. You should also get it checked if you notice uneven tire wear, wandering steering, or after hitting a large pothole.
- Q: What are the symptoms of a bad ball joint?
- A: Common symptoms include clunking or popping noises when going over bumps, loose steering, and uneven tire wear.
- Q: Can I replace ball joints myself?
- A: Replacing ball joints can be a challenging task that requires specialized tools and knowledge. If you are not comfortable working on your vehicle, it is best to take it to a qualified mechanic.
- Q: How do I know if my tie rod ends are worn?
- A: Symptoms of worn tie rod ends include loose steering, wandering steering, and vibrations in the steering wheel. You can also check for play in the tie rod ends by jacking up the vehicle and trying to move the wheel back and forth.
- Q: What type of power steering fluid should I use in my Jeep Liberty?
- A: Refer to your owner's manual for the recommended type of power steering fluid. Using the wrong type of fluid can damage the power steering system.
- Q: Is it necessary to replace both upper and lower control arms at the same time?
- A: While not always necessary, it's often recommended to replace control arms in pairs, especially if they're of similar age and mileage. This helps ensure balanced suspension performance and minimizes the risk of needing to replace the other side shortly after.
- Q: What does a lift kit do for my Jeep Liberty?
- A: A lift kit raises the vehicle's ride height, increasing ground clearance for better off-road capability and allowing for the installation of larger tires.
- Q: Can I upgrade my Jeep Liberty's headlights?
- A: Yes, you can upgrade to brighter and more efficient headlights, such as LED or HID. Ensure that the new headlights are compatible with your vehicle and meet all local regulations.
- Q: Where can I buy Jeep Liberty front end parts?
- A: You can purchase parts from various sources, including auto parts stores (like AutoZone, Advance Auto Parts, O'Reilly), online retailers (like Amazon, RockAuto), and Jeep dealerships.
I hope this article is helpful! Let me know if you have any other questions.
